TP.V56.PA671 software Firmware Download [100% Tested]

TP.V56.PA671 Motherboard Overview

TP.V56.PA671 is a universal three-in-one combo motherboard that integrates the main board control system, switched mode power supply and the backlight driver control into a single logic board. The motherboard is split into two main sections i.e. Hot Side (AC Power Supply Primary) and Cold Side (DC System Secondary).

• Hot Side occupies roughly one third of the board. It contains the mains AC line filter, bridge rectifier, the main 450V smoothing filter capacitor, and the DP2263 (or equivalent) PWM switcher IC alongside the primary chopper transformer.
• Cold Side contains the main low-voltage filter diodes that step down raw power to a stable 12V DC rail. All data processing chips, regulators, and input/output ports reside safely in this area.

In this page you will find out the TP.V56.PA671 usb update firmware for m90 variant and the bios dump for smasung variant, this helps technicians to repair their LED/LCD TVs.

Common issues fixed by tp v56 pa671 firmware

• It fixes issues related to standby and boot faults like Stuck on Red Light, Auto Shut-Off / Immediate Drop to Standby, dim Indicator / Slow Blinking Loop.
• Panel resolution and interface mismatches like Blank Screen with Active Backlight, Blank Screen with Active Backlight.
• Image or remote related issues like Inverted Image ("Mirror Mode" Glitch), Unresponsive Remote Inputs and Locked Chinese Language Settings.

TP V56 PA671 Firmware Installation Steps:

1. Download the required firmware file as per your resolution listed as 1366x768 (M90) HD, 1920x1080 (M90) Full HD.
2. Clicking on download button will redirect you to the mediafire, mega or similar drive link, download the file.
3. The file is in .rar format, extract it to get the specified firmware file (Use WinRAR or 7Zip if you are in desktop and ZArchiver or similiar if you are in andriod phone).
4. Take a USB drive and format it in fat32 (other formats like NTFS, exFAT didn't work).
5. Insert the USB flash drive into the USB port of the tp v56 pa671 motherboard.
6. Turn on the motherboard by supplying power to it.
7. On turning motherboard on, it will detect the firmware file and starts updating the system.
8. The LED Light (present with the IR sensor) will flash regularly.
9. The motherboard will be restarted upon successfull updation of the firmware.
10. Now unplug the USB drive.

Note:

1. Smart Led Zone Team is not responsible for any type of damage/loss as a result of Uploading/Downloading the software/firmware.

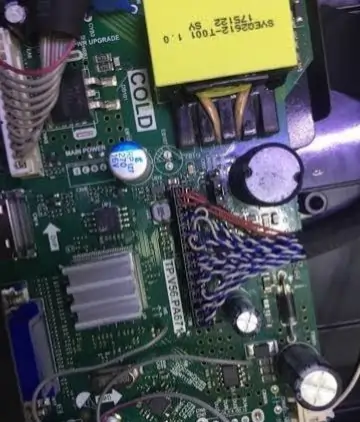

2. Always verify all the configurations before updating (an image of the motherboard is present in the page to verify).
3. These are only for the professional technicians, always backup your data before updating the firmware.
4. Software/Firmware file 100% tested by Smart Led Zone Team.
