TP.MT9216.PB731 config file Download [100% Tested]

Overview

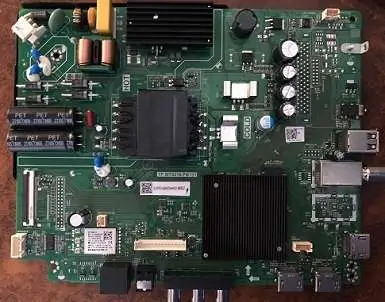

The TP.MT9216.PB731 is a robust smart motherboard frequently utilized in Haier LED TVs, specifically the LE32K7700GA model. This specific download provides the crucial panel configuration file rather than the complete system firmware. When working with TV repairs, especially after a Flash IC Memory (FIM) replacement or a mainboard swap, the motherboard often loses its original display parameters. This configuration file is designed to correctly map the motherboard's video output to the specific hardware requirements of the ST3151A07-2 LCD panel, ensuring the 1366x768 HD resolution renders flawlessly.

Common Issues Fixed

Loading this specific configuration file onto your Haier television will resolve several common display and panel-mapping errors, such as:

• Distorted or Scrambled Display: Fixes unreadable, glitchy screens caused by incorrect resolution signaling.
• Negative Picture/Color Inversion: Corrects VESA/JEIDA LVDS format mismatches that cause colors to look like a film negative.
• Upside-Down Image (Mirror Issue): Reverses flipped screen orientations that often occur after replacing a motherboard with one from a different TV size.
• Blank Screen with Backlight: Restores the picture when the TV turns on and the backlight glows, but no image data is being sent to the panel due to a missing config.

Installation Method

Installing a panel configuration file is a quick process, but it requires precise steps to ensure the motherboard reads the data correctly:

1. Format your USB Drive: Prepare an empty USB flash drive by formatting it to the FAT32 file system.
2. Transfer the Config File: Download and extract the provided file, then copy the configuration file directly to the root directory of the USB drive. Do not place it inside any folders.
3. Connect to the TV: While the Haier TV is completely powered off (unplugged from the wall), insert the USB drive into the TV's primary USB port.
4. Power the System: Plug the TV back in and turn it on.
5. Load Configuration: The motherboard will automatically detect the USB drive and read the configuration file. You may see the standby light blink or the screen suddenly display the Haier logo correctly.
6. Restart and Remove: Once the screen displays properly, turn off the TV, remove the USB drive, and turn the TV back on to confirm the settings have been saved permanently.

Note:

1. Smartledzone Team is not responsible for any type of damage/loss as a result of updating/installing the firmware
2. Software Firmware file 100% Tested by SMARTLEDZONE
