TP.MT5510I.PB805 Firmware Software download [100% Tested]

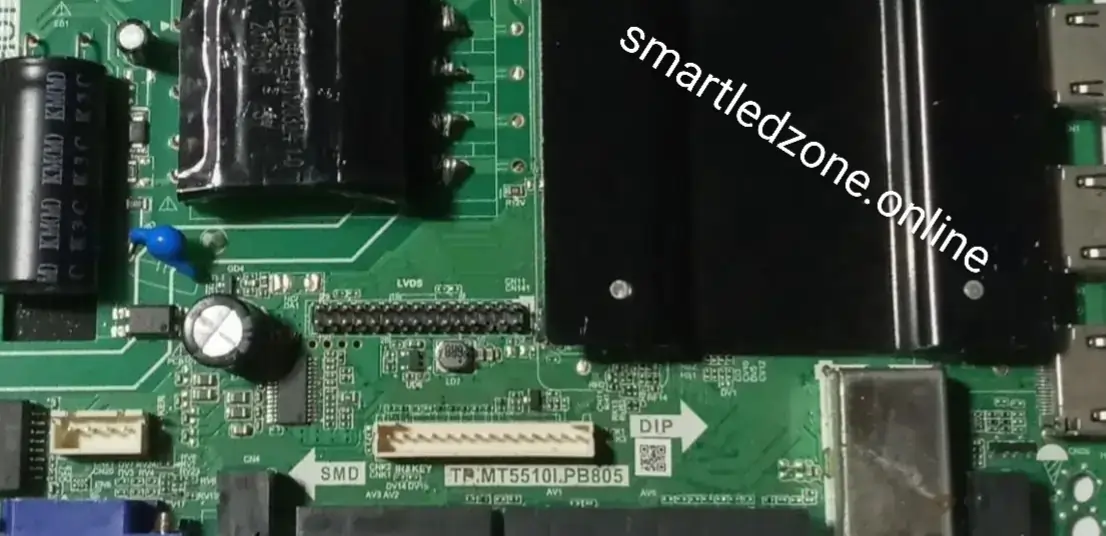

TP.MT5510I.PB805 Motherboard Overview

The tp mt5510l pb805 is a three-in-one smart LED/LCD TV android motherboard powered by a MediaTek Chipset. This page is about the tp mt5510l pb805 usb update software file, technicians use this file to resolve software realted issues in TP.MT5510I.PB805 Motherboard LED/LCD TVs.

This board comes in these TV brands/models:

• Videocon / VU
  • Model: Videocon 3936 (39-inch Smart LED TV)
  • Model: VU Smart LED TVs (Various 32" to 43" budget configurations).
• Goldvision
  • Model: Goldvision Smart Series (Typically 32" HD and 40" Full HD screens).
• Hamim
  • Model: Hamim 32" Smart LED TV (Specifically the 1366x768 display resolution configuration).
• Sanquei
  • Model: Sanquei 40-inch Smart LED TV.
• LTV / PTV (Global Retailer Brands)
  • Model: LTV-3201
  • Model: 32IB3SBD
  • Model: PTV-E3220S
  • Model: PTV-E4020S
• Generic / Assemble / No-Name Smart TVs
  • Widely used in locally assembled China Smart TVs (sold in 32", 40", 43", and 55" display sizes).

Physical Connectivity & Interfaces

• Network & Wireless: Built-in Wi-Fi (2.4GHz) and 1x RJ45 Ethernet port.
• Video Inputs:
  • 2x or 3x HDMI Ports (supporting ARC and CEC)
  • 1x VGA (PC-RGB) port
  • 1x AV (RCA Composite) Input
• Data Ports: 2x USB 2.0 Ports (used for multimedia media playback and USB firmware upgrades via allupgrade_5510_8g_1g.pkg).
• Audio Out: 1x 3.5mm Headphone Jack, 1x Coaxial / SPDIF Digital Audio Out.
• Speaker Output: Audio Amplifier supports 2x 8W or 2x 10W (8-Ohm speakers).
• Tuner: Standard Digital/Analog RF Cable Tuner.

this is also known as AKAI

tp mt5510l pb805 software Installation Steps:

1. Download the required TP.MT5510I.PB805 latest software.
2. Use WinRAR, 7Zip, or ZArchiver for the file extraction.
3. Copy the extracted file in to the USB root directory (make sure to format it first in fat32).
4. Insert the USB flash drive into the USB port of the motherboard.
5. After supplying power to the motherboard, the motherboard will turn on and detect the upgrade software in the USB flash drive.
6. The LED Light will flash regularly.
7. The motherboard will restarted after the software upgrade.
8. Unplug the USB drive.

Note:

1. Smart Led Zone Team is not responsible for any type of damage/loss as a result of Uploading/Downloading the TP.MT5510I.PB805 firmware.
2. tp mt5510l pb805 firmware file 100% tested by Smart Led Zone Team.
