T.SK107A.03 (N) Usb Update Software [100% Tested]
Uploaded: May 25, 2026
Updated: September 30, 2026
727 Downloads
1,214 Views
Technical Specifications
| Board | T.SK107A.03 (N) |
| Chipset | UTS6710-X |
| DC Input Requirement | 12V |
| Speakers | Max output power 2*3W(4Ω) |

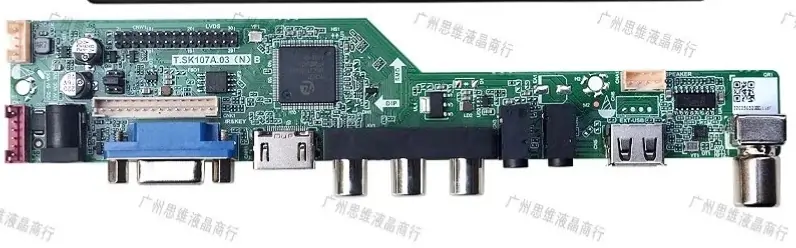

T.SK107A.03 (n) Motherboard Overview
t sk107a 03 is a universal LCD/LED controller driver board used to repair or convert monitor and television boards. This page is for technicians who are finding firmware for t sk 107a 03, to fix their LCD/LED TVs.
T.SK107A.03 (N) firmware comes in multiple resolutions listed as:
- t sk107a 03 1680x1050 software
- t sk107a 03 1440x900 software
- t sk107a 03 1920x1200 software
- t sk107a 03 1600x900 software
- t sk107a 03 1280x1024 software
- t sk107a 03 1024x768 software
- t sk107a 03 1366x768 software
- t sk107a 03 1920x1080 software
These firmware are T.SK107A.03 (N) USB update firmware files.
T.SK107A.03 (N) Motherboard mostly integrated in china-made LED/LCD TVs.
Common Issues Fixed by T.SK107A.03 Firmware
- Fixes the resolution mismatch issues, commonly found in tsk107a03 motherboards.
- Fixes the no image, upside down image, negative colors etc.
T.SK107A.03 Software Installation Steps:
- Download the required t sk107a 03 software file as per your resolution.
- The file is mostly packed in a
.raror.zipformat, so extract it using any file extractor like WinRAR or 7Zip etc. - Now use a USB, first format it in fat32, then copy the extracted firmware file into the root directory of the USB drive.
- Insert the USB flash drive into the USB port of the motherboard.
- After supplying power to the motherboard, the motherboard will turn on and detect the upgrade software in the USB flash drive.
- The Red LED Light beside the IR sensor will flash regularly to show that the motherboard is reading the firmware file.
- The motherboard will be restarted after the successfull software upgrade.
- Unplug the USB drive and enjoy.
Download Firmware
100% Free Download
Download Firmware*This button will redirect you to the download link.
Frequently Asked Questions
What is the default T.SK107A.03 firmware file name for USB flashing?
The universal driver board searches for specific binary filenames in the root directory. To ensure successful auto-detection, rename your bin file to UTS6710_100.BIN or UTS6710_03C_100.BIN depending on your exact mainboard processor variant.
How do you fix a T.SK107A.03 firmware upgrade failure or blinking red light?
If the standby LED flashes rapidly or stays solid red without updating, your USB drive format is incorrect. Format an 8GB or smaller USB 2.0 drive to FAT32, paste the correct binary code into the root directory, insert it into a powered-off board, and then reconnect the 12V supply.
What are the T.SK107A.03 service code and remote control resolution bypass shortcuts?
To open the hidden service menu, press Menu + 1147 on the remote to adjust mirror mode and LVDS mapping. To change screen resolutions without flashing software, enter the remote code Menu + 03661 for a standard HD 1366×768 resolution or Menu + 03667 for Full HD 1920×1080.
Which LCD panels are compatible with the T.SK107A.03 universal board?
The T.SK107A.03 supports a wide range of 7 to 55-inch LCD/LED panels that utilize a standard LVDS interface. It is compatible with both single-channel and dual-channel LVDS configurations across major resolutions like 1366x768 (HD) and 1920x1080 (FHD), provided you configure the on-board logic voltage jumper to match the panel's required power (3.3V, 5V, or 12V) before turning it on.
