T.H11.816_MULTI_Usb Update File [100% Tested]

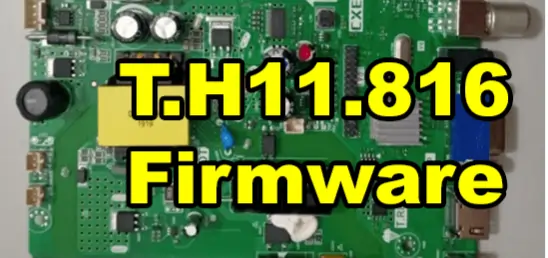

T.H11.816 Motherboard Overview

t h11 816 is a universal combo motherboard for LED and LCD TVs that integrates the power supply, constant current backlight driver, and TV main board into one unit. It is mostly used for 28-inch to 42-inch screens (commonly 32-inch panels). This page provides the latest T.H11.816 usb update software.

• Inputs & Ports: Typically includes HDMI, USB ports, AV ports, VGA, RF, and earphone jacks.
• Backlight Support: Features an integrated inverter/backlight driver section suited for standard LED strips.

This is also known as T.H11.816_MULTI_YDG.V110_USB Update firmware

Resolution and Logo Setting Code of T.H11.816 universal board

• INPUT + 03661 1366x768
• INPUT + 03662 1920x1080
• MENU + 000 = SONY
• MENU + 888 = SAMSUNG
• MENU + 999 = LG
• MENU + 111 = BLUE

Common issues fixed by T.H11.816 firmware

• Stuck in Standby Mode (Red Light Only)
• Resolution Mismatch & Garbage Display
• "Burning Mode" or RGB Color Loop
• Logo Boot Loops / Hanging on Boot
• Slow UI Responsiveness & Remote Lag

t h11 816 software Installation Steps:

1. Download the required T.H11.816 usb update file.
2. Use WinRAR or 7Zip for extracting the final t h11 816 firmware file.
3. Copy the extracted file in to the root directory of the USB.
4. Insert the USB flash drive into the USB port of the motherboard.
5. After supplying power to the motherboard, the motherboard will turn on and detect the upgrade software in the USB flash drive.
6. The LED Light will flash regularly.
7. The motherboard will be restarted after the software upgrade, unplug the USB.

Note

• Smart Led Zone is not responsible for any damage as a result of upgrading the software/firmware.
• T.H11.816 software file is tested before uploading.
