SP35231E.5 512 4GB WITH TCON 32 Software download [100% Tested]

SP35231E.5 512 4GB Firmware Overview

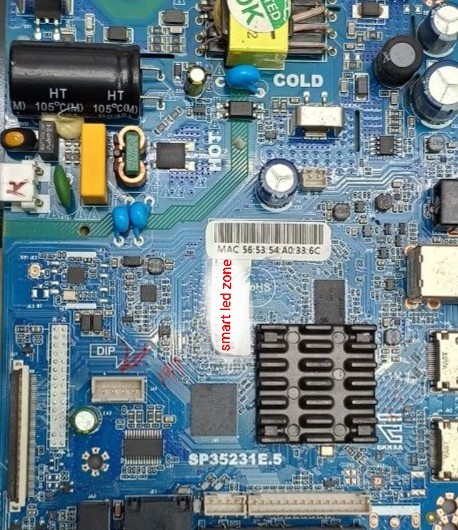

The sp35231e.5 with 512MB of ram and 4GB of internal storage and TCON 32 motherboard firmware is used by technicians to fix their LED/LCD TVs software realted issues. This page listed the tested software files for the SP35231E.5 motherboard for free.

TCON details: TCON 32 N56.N86.F70 350mA

Remote Control Service & Resolution Codes

• HD Ready Resolution (1366x768): Press INPUT (or SOURCE) followed by 3661.
• Full HD Resolution (1920x1080): Press INPUT (or SOURCE) followed by 3662.
• Factory / Service Menu Entry: Press INPUT (or SOURCE) followed by 208 to open the engineering menu. Use this menu to fix inverted/upside-down screens (Mirror Setting) or distorted color scales (LVDS Mapping).

Issues fixed by SP35231E.5 software

• Stuck on Boot Logo ("Logo Hang")
• Auto-Shutdown / 2-Second Reverse Loop
• Application Crashing & Store Failures
• Resolution Toggling Mismatches
• Permanent Blanks / Unresponsive Backlight Handshaking
• Unresponsive Standby Deadlock
• Corrupt Factory Mirror/Mapping Presets

sp35231e.5 software Installation Steps:

1. After downloading the software, you need to extract it, because the final file is packed in a .zip or .rar format.
2. Now you need a USB drive, first format it in fat32.
3. Copy the extracted firmware file into the USB drive root directory (don't put the file in any sub folder/directory).
4. Now power off your motherboard (fully) and insert the USB drive in the motherboard's USB port.
5. Turn on the motherboard by supplying power to it.
6. The motherboard will detect the firmware after turning on and the Red Led Light beside the IR sensor blinks in loop to show that it is actively reading the file.
7. The motherboard will automatically restart's after the firmware has been updated.
8. On successfull firmware installation, unplug the USB drive.
9. Now setup all the things, and change the resolution if you want by using resolution codes (listed above).

Note:

1. All firmware/software and bios dump files are property of their respective manufacturers, Smart Led Zone only provides these for technicians and we are not responsible for any damage or loss as a result of updating/installing any firmware/software and bios dumps.
2. All of the firmware/software and bios dump files are tested before uploading.
