DVR-104G-M1 or 80388_P REV3.0 Bios Dump file [100% Tested]

HiLook DVR-104G-M1 Overview

The HiLook dvr-104g-m1 (also designated as DVR-104G-M1/T) is a 4-channel hybrid digital video recorder that supports analog BNC and IP camera inputs.

• Smart Features: Motion Detection 2.0 with deep-learning-based classification for human and vehicle targets to filter out false alarms (like animals or blowing leaves).
• Audio: Supports Audio over Coaxial (AoC) cable for transmitting both data and audio through a single coax cable.
• Network & Ports: 1 RJ45 10/100 Mbps Ethernet port, simultaneous HDMI and VGA video outputs (up to 1920 × 1080 resolution), and USB ports for local mouse control.
• Power Supply: 12 VDC, 1.5A (max 10W without HDD).

This page is about download tested dvr-104g-m1 bios dump file, for technicians to resolve their digital video recorder bios related issues.

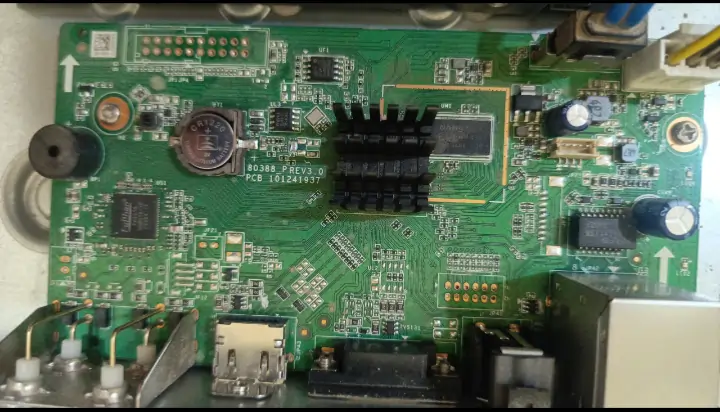

80388_P REV3.0 PCB 101241937

Main problems fixed by dvr-104g-m1 bios file

• The Motherboard "POST" Failure (Total Bricked State)
• "Logo Loop" Hangs and Continuous Restarts
• Missing or Scrambled System Hardware ID (MAC & Serial Bugs)
• Hardware Unresponsiveness / Frozen UI
• Hard Admin Lockout (Wiping a Hard-Bricked Password)

How to Flash the BIOS (Using CH341A / RT809H / RT809F)

Follow these steps precisely to flash your motherboard:

1. Connect the Programmer: Attach your hardware programmer (e.g., CH341A Pro, RT809H, RT809F) to the physical BIOS SPI flash chip using an IC test clip or an adapter socket.
2. Backup Original File: Launch your programmer software, click Read, and save a backup copy of the original corrupted BIOS file before making any changes.
3. Extract the Firmware: Unpack your downloaded BIOS archive using the latest version of WinRAR or 7-Zip.
4. Load the Dump: Open the extracted .bin or .hex file inside your programming software.
5. Write & Verify: Wipe the chip by executing an Erase command, click Write/Program, and run a Verify check to ensure the data matches perfectly.

⚠️ Important Flashing Precautions

• Mandatory Backup: Never skip backing up your original BIOS file; it contains your unique hardware details (MAC address and serial number).
• Exact Board Match: Confirm the .bin file matches your exact motherboard model and revision (80388_P REV3.0).
• Hardware Risk: Writing incorrect or corrupted firmware can permanently brick the motherboard.
• Warranty Void: Manual chip flashing via hardware programmers typically voids the manufacturer's warranty.

Note

• Smart Led Zone Team is not responsible for any damage or loss as a result of flashing any BIOS.
• All BIOS files remains the property of their respective owners, we only provide these for technicians to resolve their BIOS related issues.
• All BIOS files are tested before uploading.
