AHB7804R-3520DV3-6158C V2.02 Bios Dump file [100% Tested]

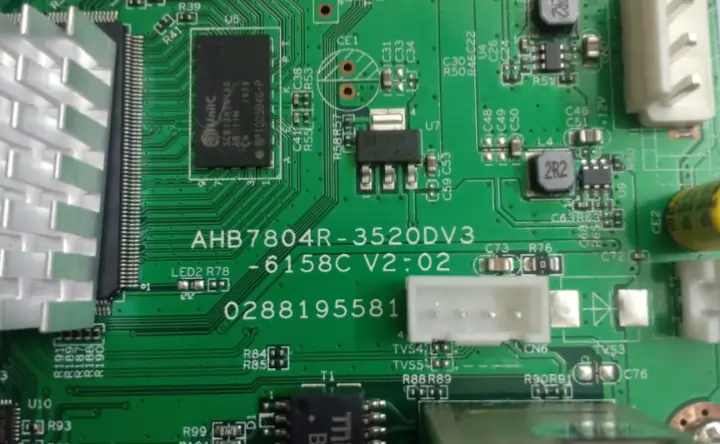

AHB7804R-3520DV3-6158C V2.02 Overview

The ahb7804r is a 4 channel digital video recorder motherboard manufactured by Hangzhou Xiongmai Technology (XM), commonly used in hi-vision and other chinese brand 4 channel digital video recorders.

Hardware Specification Breakdown

• AHB7804R: The baseline architecture layout designed by Xiongmai.
• 3520DV3: Indicates the system runs on a HiSilicon Hi3520D V300 main processor.
• 6158C: Identifies the Nextchip NVP6158C video decoder chip, which handles the incoming analog BNC camera video feeds.
• V2.02: The precise hardware layout revision.

In this page you can download the latest bios dump file for AHB7804R-3520DV3-6158C V2.02 motherboard DVRs.

AHB7804R-3520DV3-6158C V2.02 0288195581, Hi Vision 4CH

Common faults fixed by AHB7804R-3520DV3-6158C V2.02 bios dump file

• The "H.264 DVR" Logo Loop / Boot Freeze
• Dead Board / No Display (Black Screen)
• Forgotten Master Password / Permanent Lockout
• Network Adapter Failure / Cloud Offline Status
• Sudden UI Freezing or Missing Hard Drive Faults

How to Flash the BIOS (Using CH341A / RT809H / RT809F)

Follow these steps precisely to flash your motherboard:

1. Connect the Programmer: Attach your hardware programmer (such as the CH341A Pro, RT809H, or RT809F) to the physical BIOS SPI flash chip using an IC test clip or an adapter socket.
2. Backup Original File: Launch your programmer software, click Read, and save a backup copy of the original corrupted BIOS file before altering anything.
3. Extract the Firmware: Unpack your downloaded BIOS archive using the latest version of WinRAR or 7-Zip.
4. Load the Dump: Open the extracted .bin or .hex file inside your programming software.
5. Write & Verify: Wipe the chip by executing an Erase command, click Write/Program, and run a Verify check to ensure the written data matches perfectly.

🛠️ Quick Flashing Tip for this Board

Because these Xiongmai (XM) motherboards rely on unique cloud serial numbers (Cloud IDs) for remote P2P viewing, always read and save a backup of your original corrupted BIOS file before erasing the chip. If the new dump changes your cloud ID or MAC address to a generic one, you can use a hex editor to manually copy your original MAC address block back into the new clean file.

Note

• Smart Led Zone Team is not responsible for any damage or loss as a result of flashing any BIOS.
• All BIOS files remains the property of their respective owners, we only provide these for technicians to resolve their BIOS related issues.
• All BIOS files are tested before uploading.
