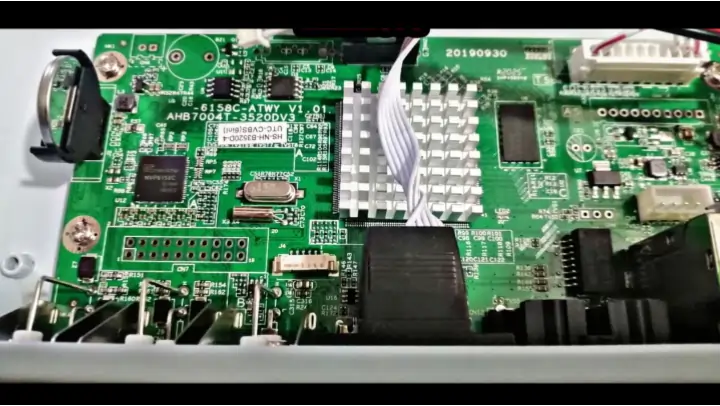

AHB7004T-3520DV3-6158C-ATWY V1.01 Overview

The AHB7004T-3520DV3-6158C-ATWY V1.01 refers to a 4-channel CCTV digital video recorder (DVR) or AHD (Analog High Definition) mainboard/chassis commonly used in generic or budget security systems (such as Zvision or similar brands).

This page list the ZVISION 4ch ZVD-5204HZ-H1 bios dump file for technicians to resolve their digital video recorder bios related issues.

Faults That CAN Be Fixed with AHB7004T-3520DV3-6158C-ATWY V1.01 BIOS Dump

• Stuck on the Logo (Boot Loop): The DVR turns on, displays the initial startup screen, but never loads the main menu. This happens when system files inside the SPI flash are corrupted.
• No Display / Black Screen (Power LED On): The motherboard receives power (LEDs light up, CPU gets warm), but there is absolutely no video output via HDMI or VGA.
• Bypassing / Resetting Forgotten Passwords: If you are locked out and traditional master passwords or date-calculators do not work, writing a clean dump wipes all configuration data back to the factory-default blank password.
• Failed USB Firmware Upgrade:The DVR died or went blank halfway through a standard USB network update.

Step-by-Step Fix Process

1. Requirements

• A hardware IC programmer (e.g., CH341A Programmer Setup or RT809F Programmer).
• An SOP8 test clip or a soldering iron to remove the chip.
• The correct 16MB BIOS dump file matching your exact board layout (AHB7004T-3520DV3-6158C-ATWY V1.01).

2. Read and Backup (Crucial)

Before wiping anything, hook your programmer to the SPI flash memory chip (usually a Winbond or Macronix 8-pin chip located near the HiSilicon CPU). Always click "Read" and save the old corrupted file onto your computer. If the new file is incorrect, you will need this backup to keep your original MAC address and serial number configuration.

3. Erase and Write

1. Load your downloaded clean .bin file into the programmer software.
2. Click Erase to completely wipe the chip.
3. Click Write / Program to flash the clean BIOS dump.
4. Click Verify to ensure the code matches perfectly.

Once done, re-solder or un-clip the chip and power on the board.

Note

• Smart Led Zone Team is not responsible for any damage or loss as a result of flashing any BIOS.
• All BIOS files remains the property of their respective owners, we only provide these for technicians to resolve their BIOS related issues.
• All BIOS files are tested before uploading.
